CUSTOM FIXTURES DESIGNED TO YOUR EXACT SPECIFICATIONS.

We provide magnetizing fixtures for a wide range of applications, offering a broad selection of fixtures with either magnetic or non-magnetic cores, water or air cooled, with panel or cable connections, and with integrated fluxmeter sense coils where required.

solenoid
solenoid
electromagnets
electromagnets
Radial oriented Multipolar
Radial oriented Multipolar

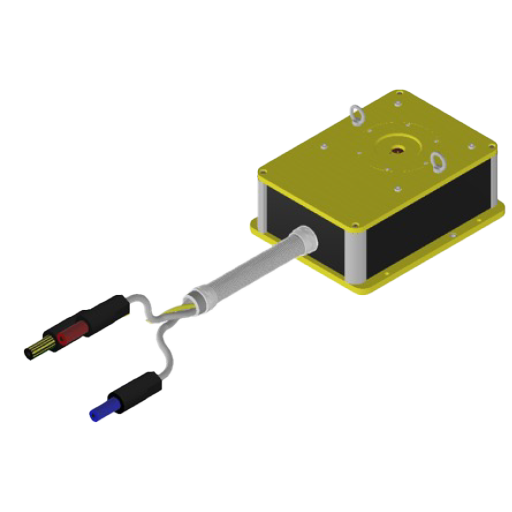

fixtures for sensors
fixtures for sensors
axial oriented multipolar
axial oriented multipolar

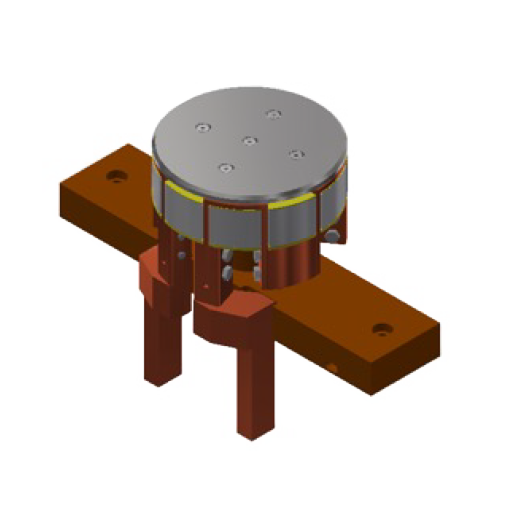

Fixture for step down transformers
Fixture for step down transformers

SOLENOIDS

  • Either with or without magnetic core
  • Magnetization, demagnetization, treating for single magnets
  • Bitter coil air cooled, or wound solenoid water cooled
  • Rectangular or circular magnetization area
  • Radial or axial Helmholtz configuration

ELECTROMAGNETS

  • Magnetic cored electromagnet
  • Magnetization, demagnetization, treating, 2-pole, small ferrite rotors, DC motors housings, DC post assembled motors
  • Replaceable pole shoes
  • Air cooled

RADIAL ORIENTED MULTIPOLAR

  • Magnetization, demagnetization, treating for radial rotors
  • Surface mounted magnets, Interior permanent magnet, V, U, UU, VV shapes, PMaSRM, PMSM, etc.
  • Magnetic core
  • Straight, step and continuous skew
  • Water cooled
  • Flux measurement winding embedded
  • Processes internal rotors or external rotors

AXIAL ORIENTED MULTIPOLAR

  • Magnetization, demagnetization, treating for axial rotors
  • Straight, Halbach
  • Either with or without magnetic core
  • Straight, step and continuous skew
  • Water cooled
  • Flux measurement winding embedded

FIXTURES FOR SENSORS

  • Magnetization, demagnetization, treating for axial and radial magnetic sensor targets
  • Straight, Halbach
  • Single, multiple trace, uniform or specific polar pitches
  • Either with or without magnetic core
  • Custom magnetic shapes
  • Water or air cooled

FIXTURES FOR STEP DOWN TRANSFORMERS

  • Magnetization, demagnetization, treating for radial and axial rotors
  • Magnetic core
  • Straight, step and continuous skew
  • Air cooled
  • Flux measurement winding embedded
  • Requires step down transformer, two or multi-terminals
DOWNLOAD THE PDF OF MAGNETIZING FIXTURES

SPECIAL FIXTURES

  • DC Big Solenoids: for spattering
  • Wireless concentrator (patent pending): for randomly disposed variety of small magnets
  • SAT fixtures: cross flux fixtures for SPM rotors, torque reduction
  • Sintered powder pre-orientation on die heads
  • Magnetization of Inverse magnetostrictive effect shafts
  • Magnetization of multipolar plastic bonded folios
  • Magnetization for linear motors

Our proven methodology for the design of our magnetizing fixtures

The LE project process: from initial design to validating the prototype fixture.

  • YOUR EXACT SPECIFICATIONS

    Our entire design process begins with your application. We take the time to understand your needs in order to craft the right equipment.

  • ELECTROMAGNETIC CALCULATION

    FEA offers a predictive process superior to trial and error, prototyping to obtain the highest magnetic performance.

  • CUSTOM DESIGN & ENGINEERING

    Our highly specialized experts design from the ground up. Each fixture is custom engineered to meet the exacting demands of your application.

  • THERMAL-ELECTRICAL ANALYSIS

    Then we put it to the test. The design must withstand the strength of the magnetic field as well as intense levels of heat and energy.

  • PROTOTYPE VERIFICATION

    In the final step, the prototype fixture is validated using magnetized samples to ensure its performance.
