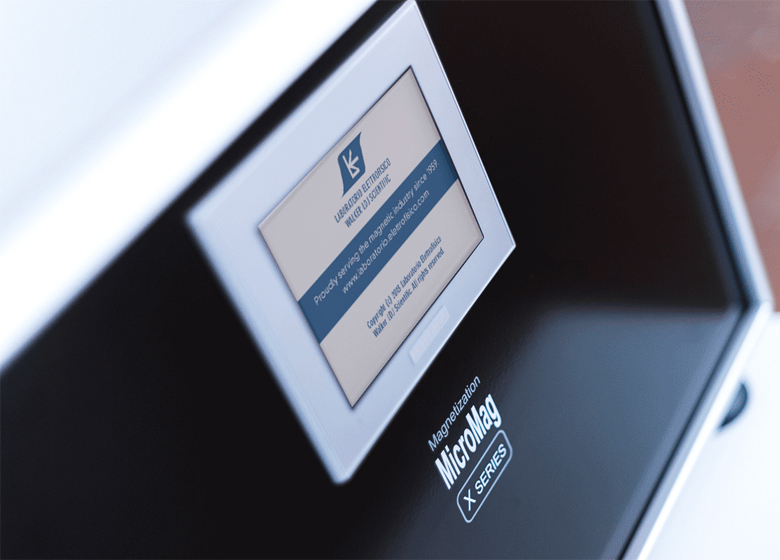

MicroMag™ Magnetizer

Our best-selling magnetizer of all time: i Mag™ Micromag

i Mag™ Micromag is a low energy magnetizer designed for small coils. The internal capacitors can be adjusted to emit a total energy of up to 2700 J – 3000 V. It can be set to either magnetize only or to demagnetize only. There is a dual output model that magnetized with 2 magnetizing fixtures, connected at the same time, working alternatively. All models feature touch screen display with HMI interface.

Safer operation is built into the design. If a panel is removed or the front or rear doors are not securely closed, the i Mag™ Micromag will not operate.

Key benefits

• Built-in safety features
• Wide range of capacitance and voltage, either low voltage/high capacitance (for wider pulse) or high voltage/low capacitance (short pulse width)
• Optional: Remote Service (via LAN or Wi-Fi)
• Compact size

TECH SPECS

• Voltage: up to 700 V / 3000 V
• Voltage resolution: 1 V
• Capacitance: up to 8000 µF/600 µF and many other combinations
• Rated peak current: 20 kA
• IP 45
• Power supply: 200-230 V, 50/60 Hz
• Dimensions: L 655 x W 800 x H 450 mm – L 25.8 x W 31.5 x H 17.7 inches
